Chamonix makes two 8x10 view cameras: The 810V and the 810 Alpinist. The modern design of both view cameras aims to achieve a perfect balance between light weight and stability. Both cameras are handmade, constructed of wood and carbon fiber composite material, which produce a signature aesthetic finding widespread appeal among photographers.

The 810V
The 810V camera has a light weight of 4,300g. But because of the generous use of carbon fiber material, it is a very rigid camera. To keep its weight as low as possible, we have eliminated some infrequently used movements. It is not a perfect camera for all occasions, but, like others in the Chamonix line-up, it does have its unique charm and character.

Much of its light weight comes from its specially designed T-shaped base plate which has a complex structure like a bridge. This innovation came out of the Chamonix principle of light weight and high quality.

While use of carbon fiber gives the camera extreme rigidity, all wood parts are carefully selected and hand varnished and polished by experienced craftsmen using traditional techniques. Hand-crafted objects usually are the most beautiful, and the Chamonix 810V view camera's beauty comes from such craftsmanship. Only a few master craftsmen are qualified for the final steps of construction so that each camera is another example of the unique features of the Chamonix line of cameras.

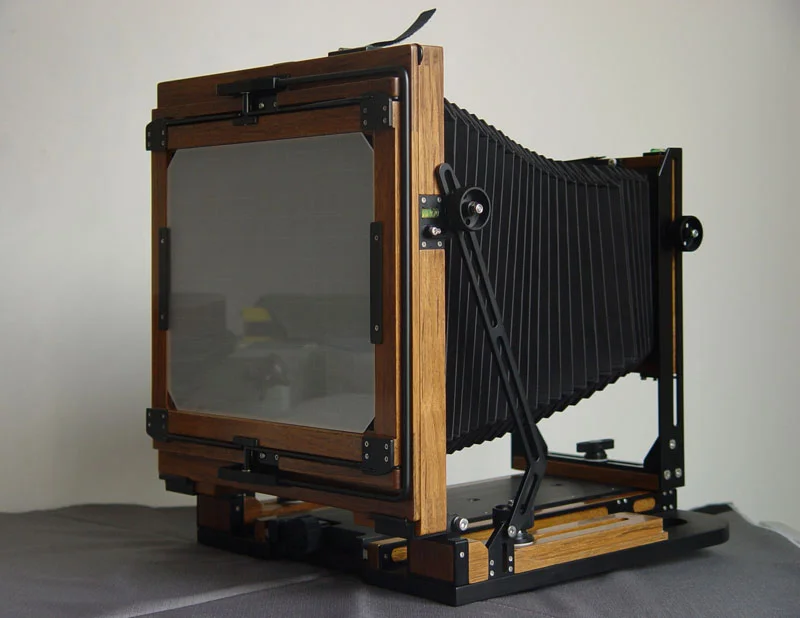

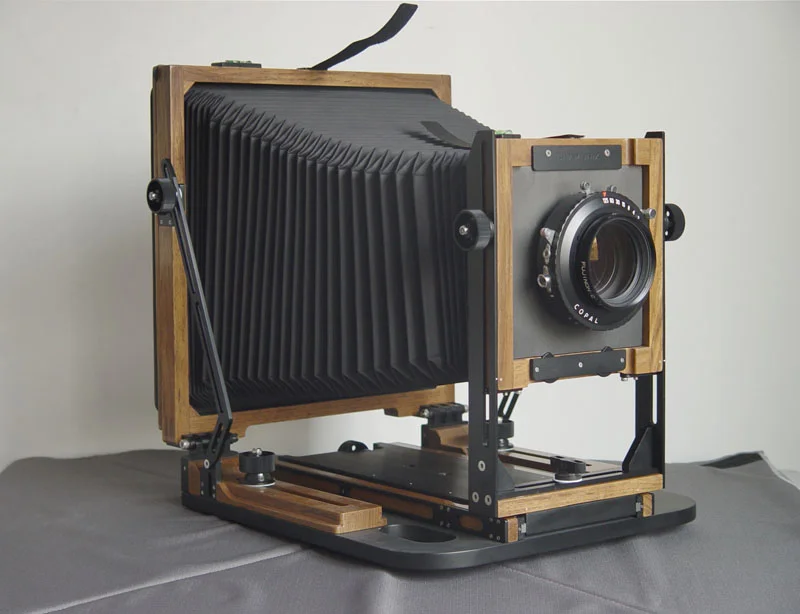

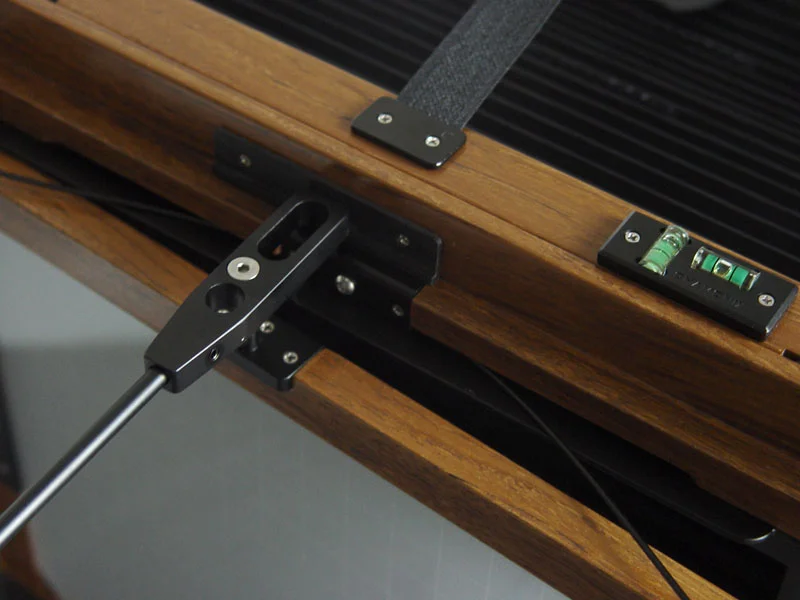

The metal parts of the Chamonix 810V view camera are anodized aluminum with black finish. The wood choice for our current batch is teak as shown in the bottom 7 pictures in this page.

The Chamonix 810V view camera uses a Sinar-type lens board.

After few years in production, in response to user feedback, Chamonix made a few changes found in the current–second generation–810V view camera. They are:
1. Unibody carbon fiber base board
2. Increased rear frame thickness by 5mm
3. Bail back-like mechanism for inserting film holders
4. Front rise and fall lock
5. Weight increased 1kg (2.2 pounds)

Tech data:

weight: 4,100g

bellows draw: max 680mm and 850mm with our extension board, min 95mm

front standard: rise 101mm, fall 45mm; shift 50mm on each side, tilt 30 degrees

rear standard: swing 10 degrees on each side, tilt 30 degrees

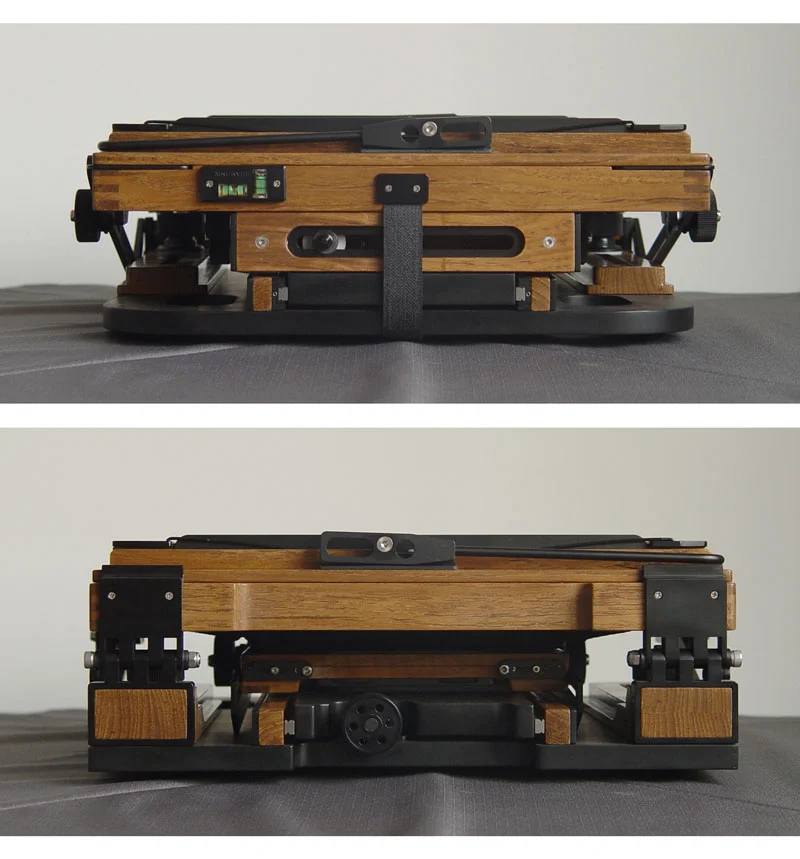

The folded size of our 810V is 323mm X 355mm X120mm.

Most photographers using 8x10 cameras don’t need a Fresnel lens on the camera, but there are some who shoot in dim lights and want a Fresnel lens. Thus we give you an option of Fresnel lens with our 810V camera with an added cost of $230.

810V camera is $4,195 with FedEx shipping.

Our 810V cameras are in stock ready to ship.
