For the 5x7 format, Chamonix produces 3 models: 57N, 57Fs-2, and 57W-d. The 57N is a horizontal-only model for photography in landscape orientation. The 57Fs-2 and 57W-d models have convertible backs for photography in either landscape or portrait orientation.

The cameras in the 57 series are made with teak. (Note that walnut and maple are no longer available. See CAMERAS tab above for more information.)

The metal parts–front/rear standards and small parts–are painted black to complement the color of the carbon fiber components of the camera.

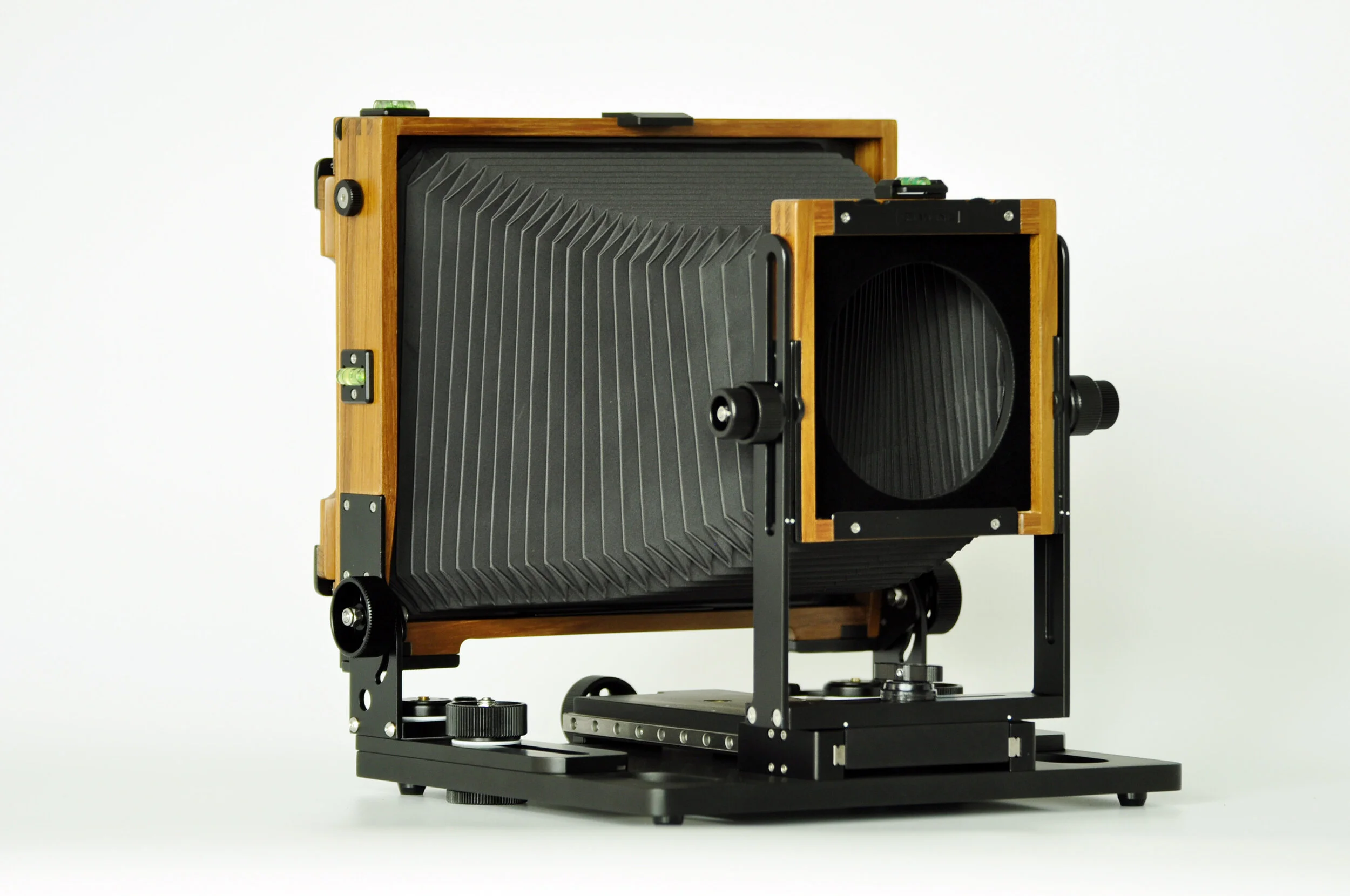

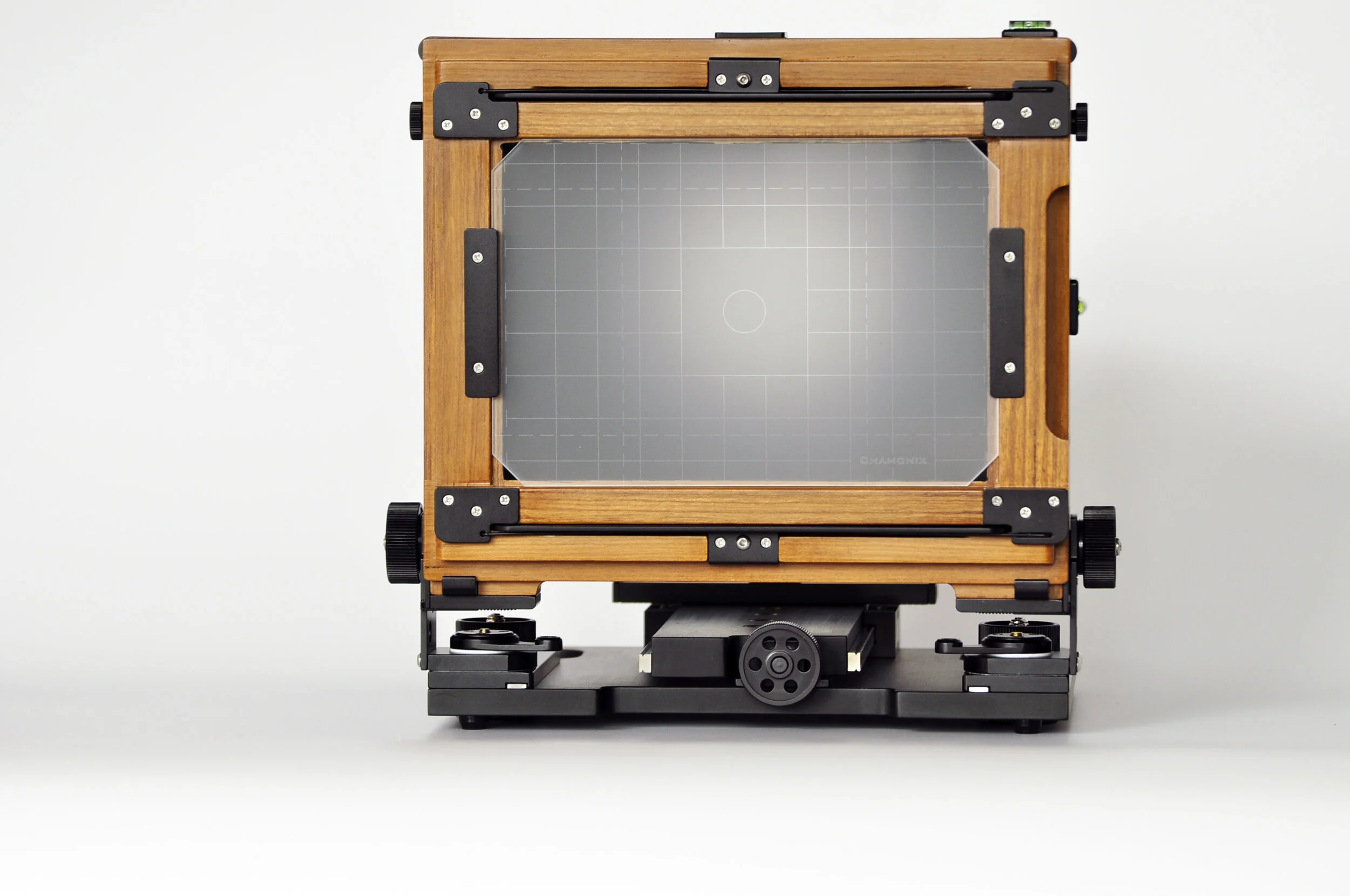

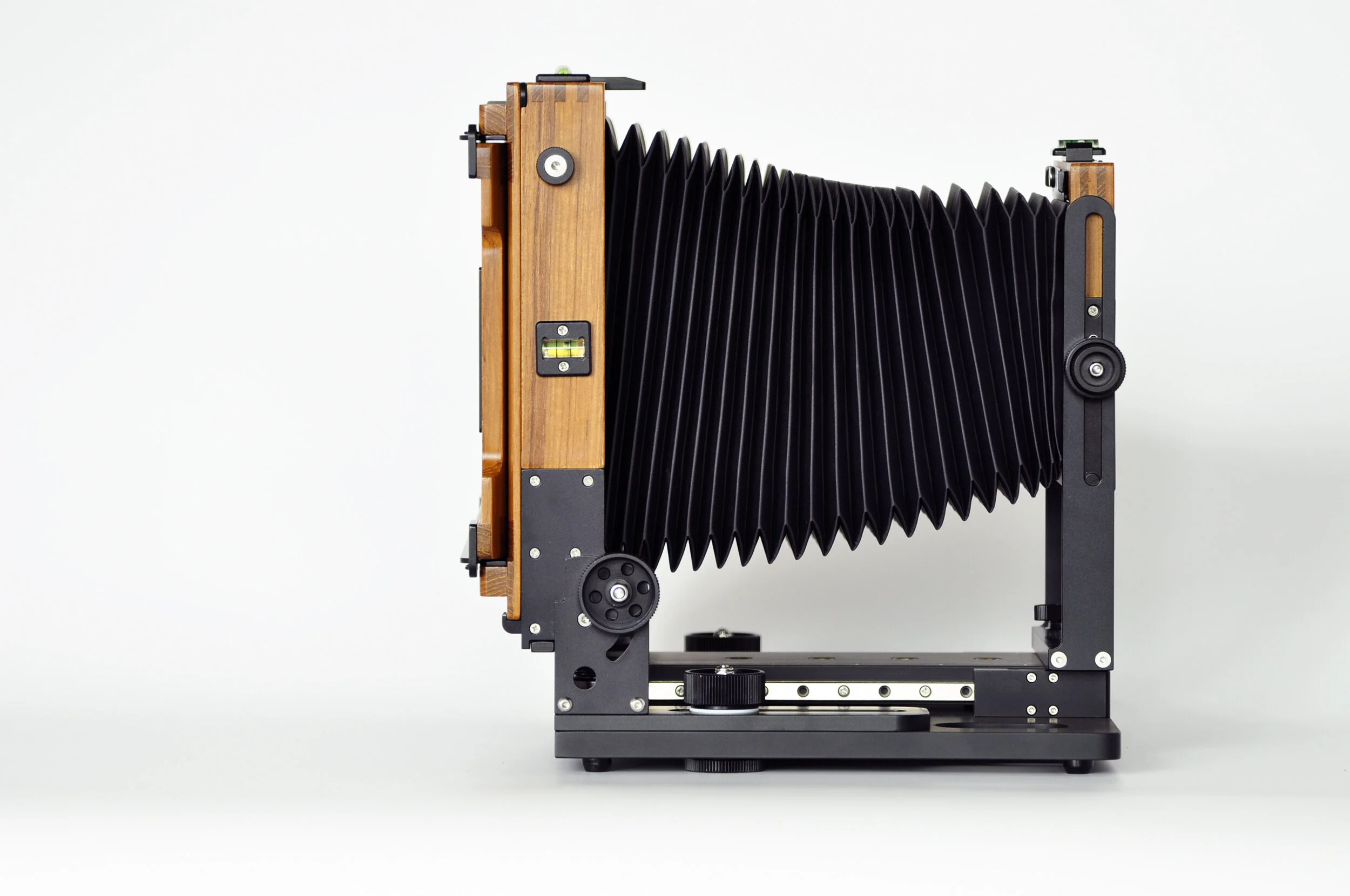

57N3 Camera

The 57N view camera is similar to our 45 series cameras, and it handles like the 45 series. The 57N3 camera uses Linhof-type lens boards.

57N3 horizontal camera tech data:

weight: 1,890 grams

bellows draw: 50mm min, 435mm max without extension board, 600mm with extension board

rear standard swing: 10° left and 10° right

rear standard tilt: 30°

rear standard forward: 70mm

front rise: 56mm, front fall: 37mm

front shift: 35mm left and 35mm right

folded size: 262mm x 205mm x 100mm

Our 57N3 cameras are in stock. It is $2,285 with FedEx shipping.
